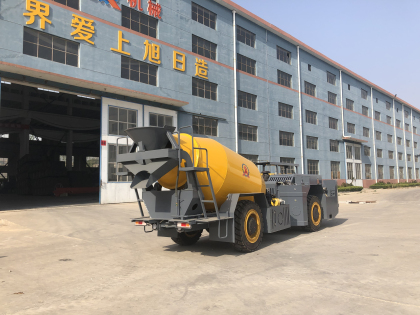

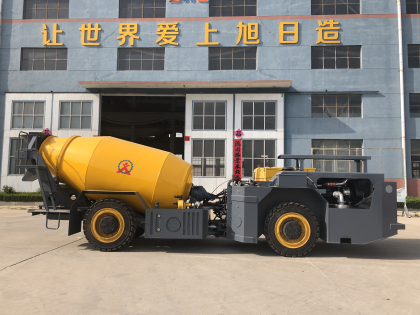

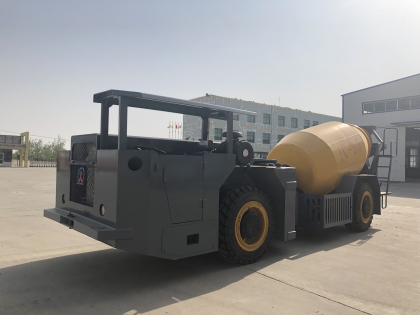

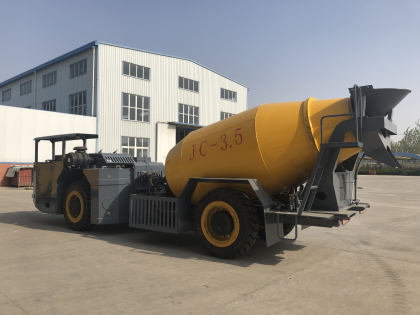

JC-3.5 CONCRETE MIXER TRANSPORTER

JC-3.5 CONCRETE MIXER TRANSPORTER  is a concrete mixing and transportation equipment for underground mining.

JC-3.5 concrete mixer adopts diesel engine, four wheel drive, central articulation; it has big steering angle, and compact body so that the machine can turns easily; it is suitable for tunnel section no less than3.0mx3.0m.

Advantage and characteristics

●Power system: Cummins water-cooled low pollution, low speed and big torque engine;

●Power transfer system: Integrated transmission, spring brake hydraulic release drive axle, mining cut-resistance tires;

●Brakes: Wet multiple disc brake for travelling brake; Mico charging valve, brake valve; Pilot valve controlling spring brake;

●Chassis: Central articulated framework, framework swinging from the axles thru swinging frame;

● Concrete mixer drum is made of alloy; famous brand hydraulic system makes the drum rotate more fluently and material output with high efficiency;

●All hydraulic hoses and electric cables with fire-resistance tubes to prevent explosion or fire.

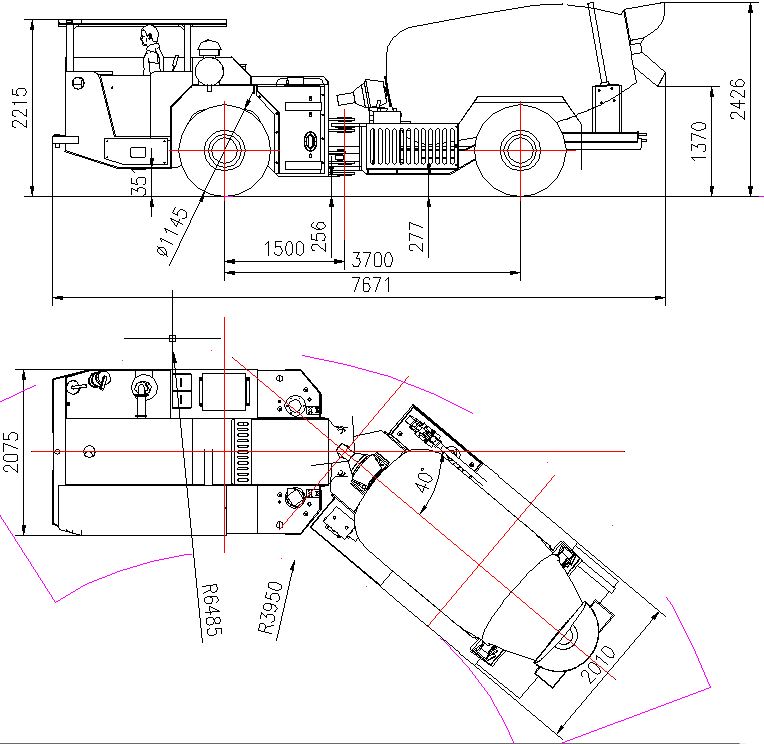

VEHICLE LAYOUT
