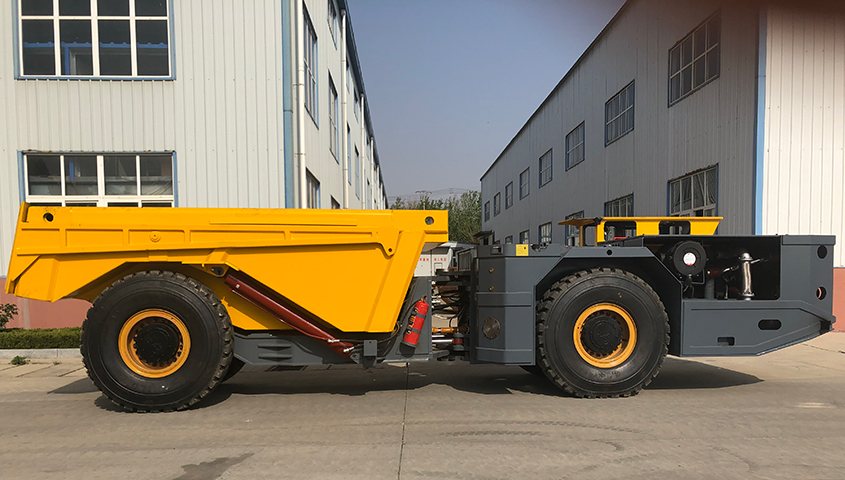

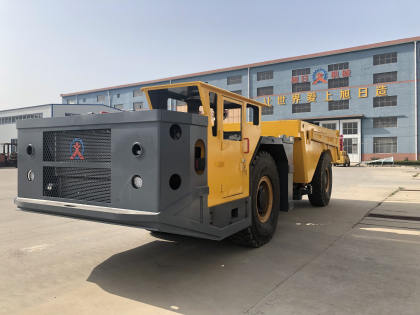

UK-20 Low Profile Dumper Truck
UK-20 Low profile dumper truck is a wheeled transporting equipment designed for underground mining. It works together with LHD underground wheel loader for transporting mine ores and other materials.
UK-20 adopts diesel engine, four wheel drive, rear dump wagon box, central articulation framework with big steering angle and small turning radius.
It is suitable for tunnel section no less than 4mx4m，external turning radius no less than 9m,and slope no more than 14o.
Tunnel temperature -5℃～40℃, Maximum moisture ≤85% (Temerature=25℃)
Evaluation ≤1000m; when the evaluation is more than 1000m please inform us in advance.
Sulfur content in diesel ≤0.2%
1. Advantage and Characteristics:
●Power system: Cummins GBIII low speed big torque water-cooled low pollution diesel engine;
●Power transfer system：Integrated transmission and spring-brake hydraulic release drive axles, mining cut-resistance inflation tires, four wheel drive;
●Hydraulic components: famous brakes like MICO charging valve, brake valve etc.;
●Chassis: central articulated framework, swinging frame for front and rear axles, sealed cabin;
●Rear dump wagon box with big lifting angle, easy for dumping mine ores and other materials；
●All hydraulic hoses, electric cables are sealed with fire-resistance tubes to give protection for explosion or fire;
|
Main Specifications |
|
|---|---|
|
Rated loading capacity |
20000 KG |
|
Wagon box volume (Heap) |
10 m³ |
|
Travelling speed |
|
|
1st gear |
3.7 km/h |
|
2nd gear |
5.8 km/h |
|
3rd gear |
14.7 km/h |
|
4th gear |
30 km/h |
|
Wagon box lifting |
12 s |
|
Wagon box descending |
9 s |
|
Maximum machine height (offload) |
4550mm |
|
Maximum grade ability (Full load) |
25% |
|
Maximum traction force |
≥190 KN |
|
Turning radius |
8400 mm |
|
Maximum machine height (Off-load ) |
5200 mm |
|
Maximum off load angle |
68° |
|
Steering angle |
±40° |
|
Ground clearance |
330 mm |
|
Air-conditioner |
Optional |
|
External dimensions (L×W×H) |
9100 mm×2300 mm×2450 mm |
|
Vehicle kerb mass |
18000KG |
2. Main components
2.1 Engine: Cummins QSC8.3 Water-cooled low pollution diesel engine
Rated power output: 194 kw/2100rpm
Maximum torque output: 1135 N·m@1500 r/min
Starting method: electric starter
Exhaust purifying method: catalyst purifier with silencer
Accelerator control: Williams electric throttle control
2.2 Power transfer: Hangzhou Advance Gears HZ117A+YJ375
Drive axle: XR-40T ( Xuzhou Jiuherun)
Main reducer ratio: 5.286
Wheelside ratio: 4.94
Main reducer ratio: 26.11
Tyres: 16.00-25 inflation tires ( Guizhou Advance)
2.3 Brake system
Braking pump: Weichai Power CBLZ1016 (displacement 16ml/r)
Braking pressure: 16 MPa
Travelling brake: MICO wet multiple discs spring brake, hydraulic release
Parking brake valve model: RA3/3/2/G-3
2.4 Steering device
Type: Central articulation, hydraulic steering
Steering pump: CBLZ2080,displacement 80ml/r
Maximum steering pressure: 14 MPa
Steering device: BZZ-1000
Priority valve: YXZ-F250
Steering cylinder: Cylinder housing Dia/rod dia×Qnty:φ100/φ55 mm×2
2.5 Service system
Working directional valve: SN-6
Lifting cylinder Cylinder housing Dia/rod dia×Qnty:φ160/φ90 mm×2
Service system maximum pressure:16 MPa
2.6 Electric system:
System voltage: 24 DC
Starter voltage/power: 24V/6kw
Illumination:
Front lamp: 2×75W, 24V
Rear lamp: 2×75W，24V
Mining signal light: 2 pcs, 24V
Ceiling light: 1 pc, 24V
2.7 Oil tank volume
Hydraulic oil tank: 300L
Diesel tank: 300L
Transmission:36L
Drive axle main reducer: 17L×2
Drive axle wheelside reducer: 3.5 L×4
Engine lubrication oil；28L
Options:
· Automatic fire suppression system on engine
· 360ocamera/Video system
· Automatic lubrication system
· Sealed cabin with air-conditioner
MACHINE LAYOUT
